The math of the distance between two points is really easy, just square(x^2 +y^2 +z^2)
but how to implement it into the program and let it show on a GUI, then combine with GIS platform is the task
So the first step is to get the x,y,z of the two ends:

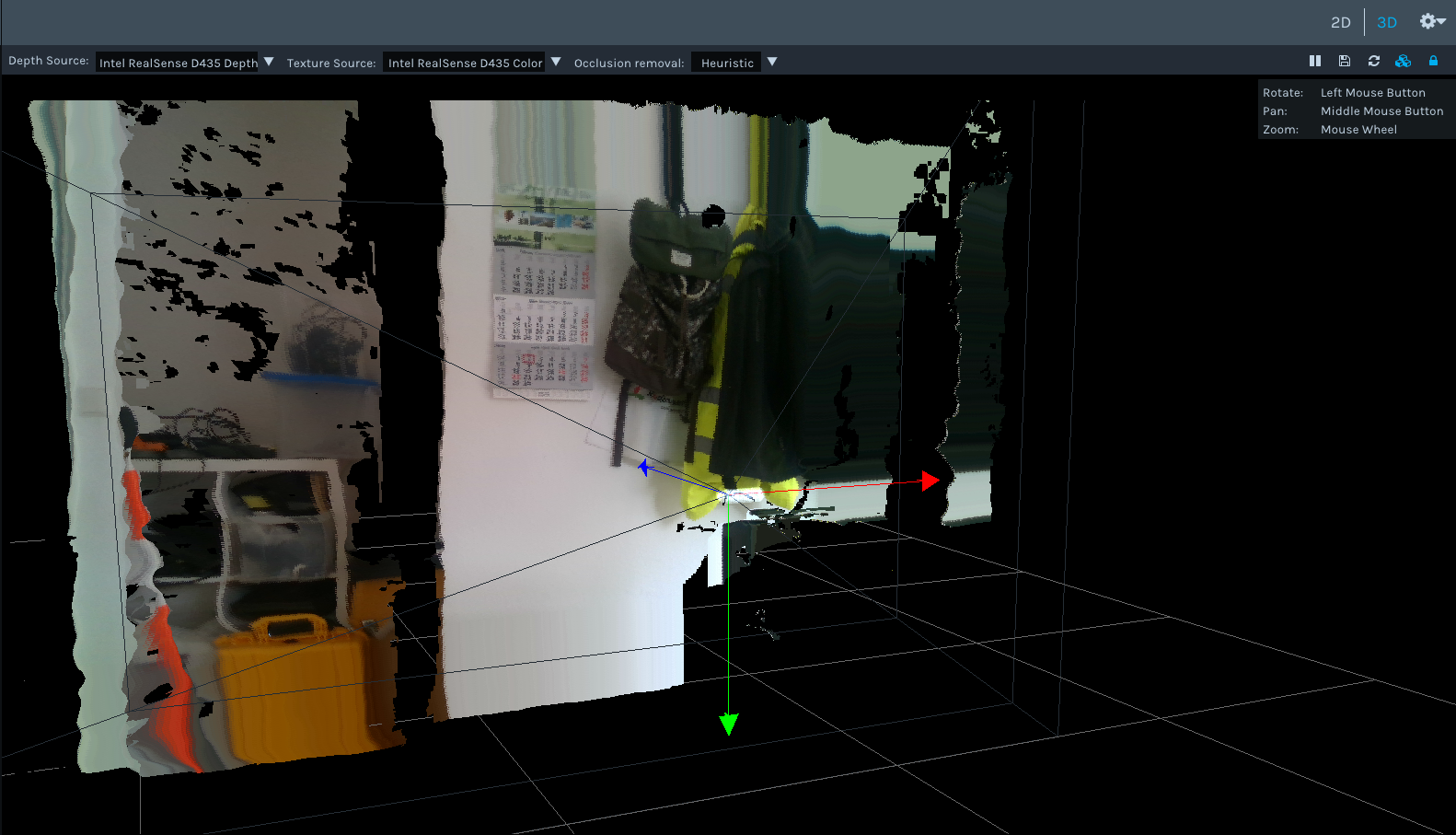

from x,y in the picture to x,y,z in 3D world

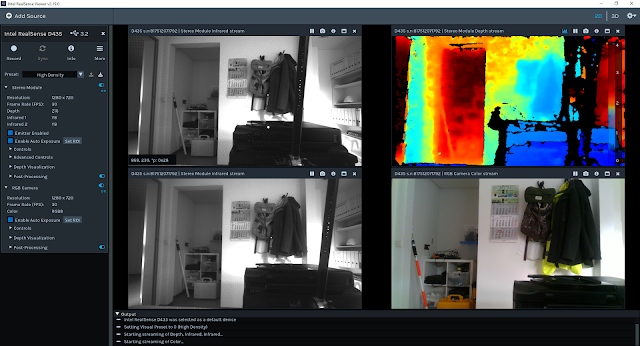

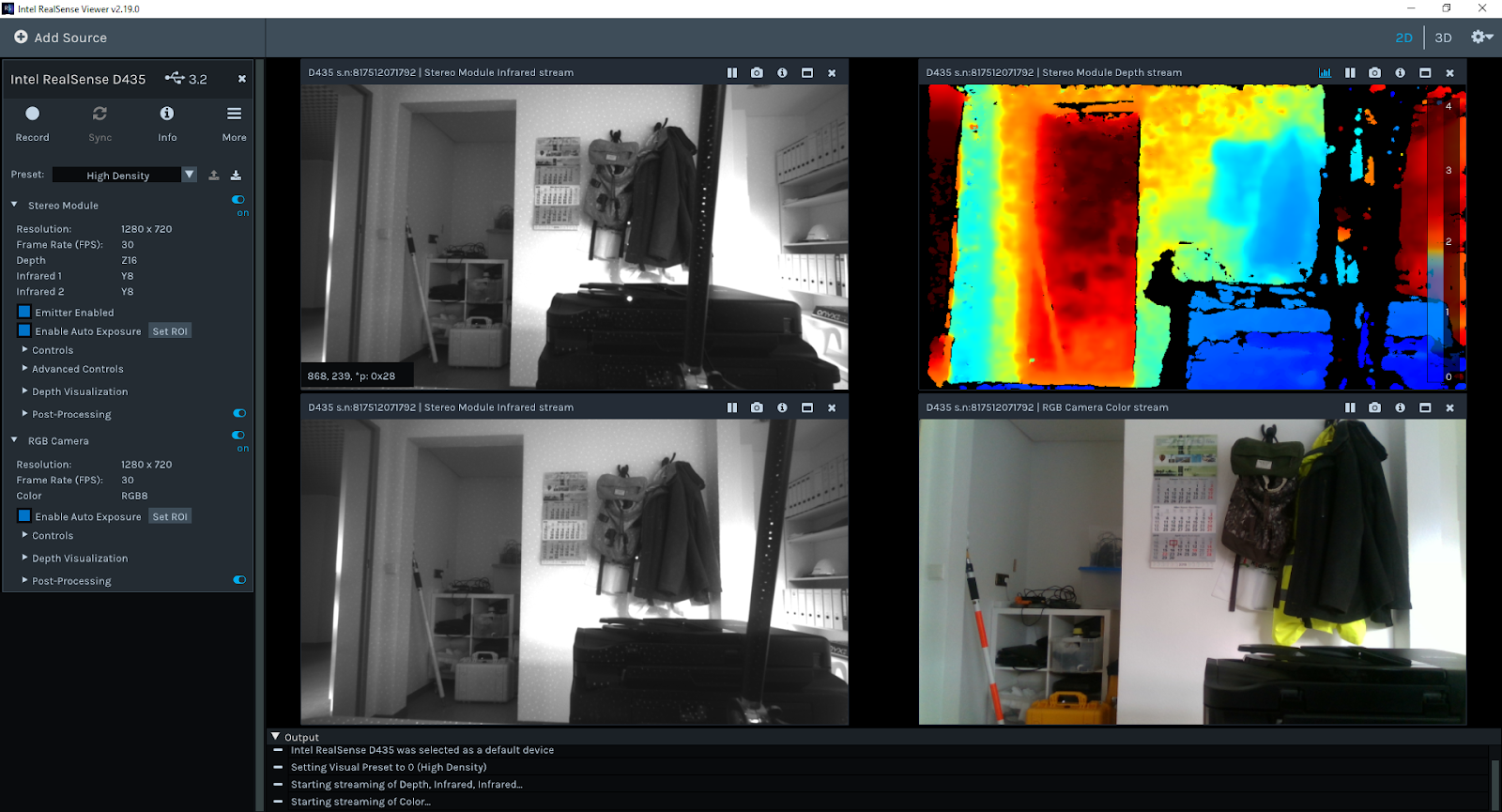

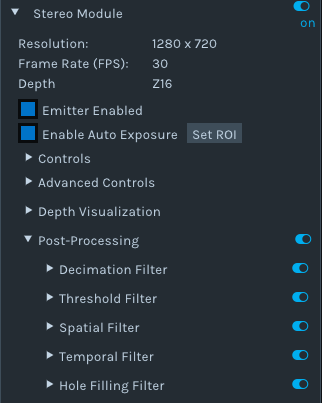

The realsense library has pixel to point, and point to pixel, the function I use is pixel to point
rs.rs2_deproject_pixel_to_point
this takes three instances, intrinsic, (x,y), and distance

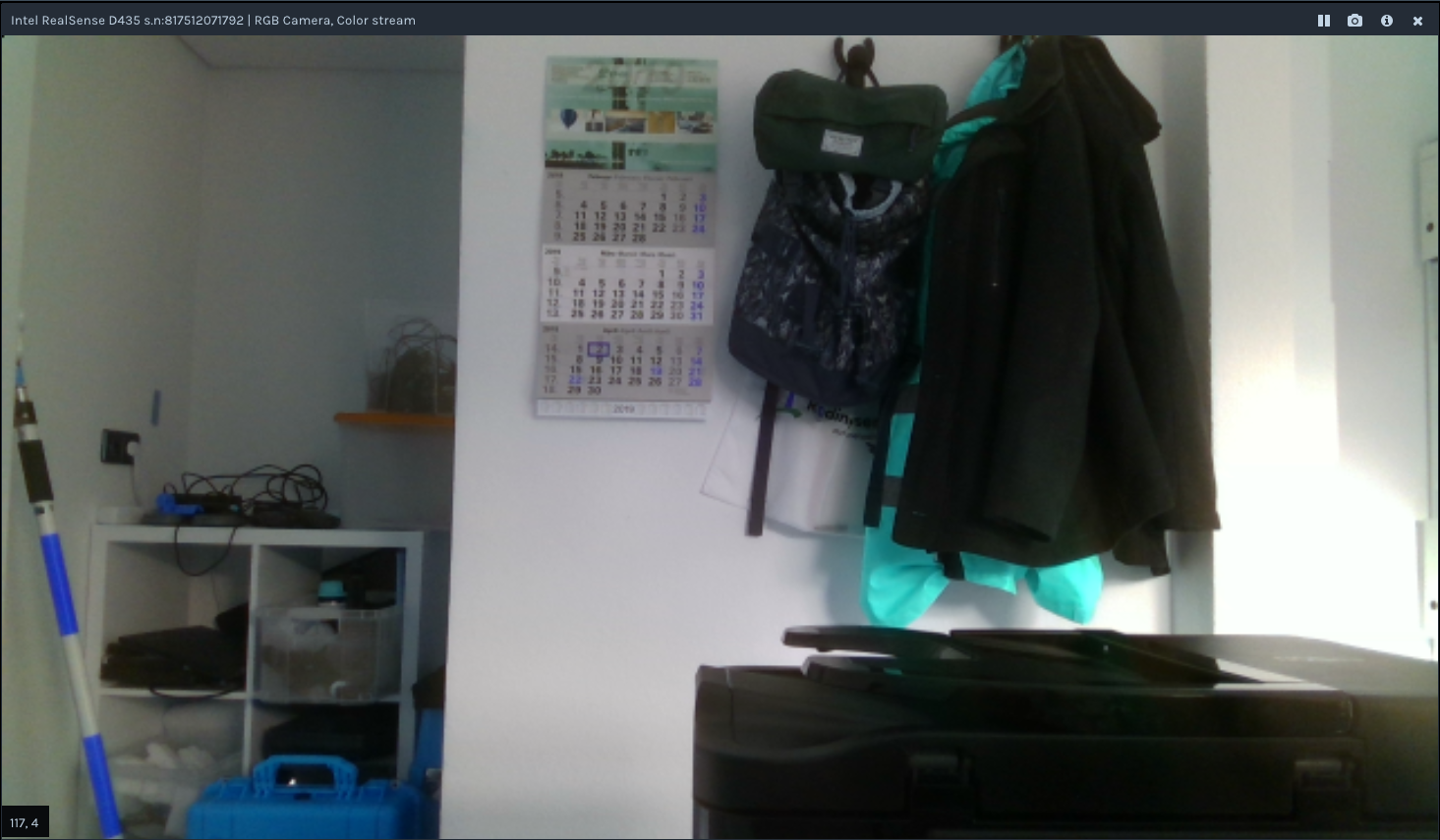

it’s calculation is simply use the dimension from intrinsic and calculate it into meter, therefor the input of intrinsic will be color, because we base on the color image x,y as point
the distance from camera will be defined from another function: depth_frame.get_distance(x,y)
and the output will be x,y,z
def calculate_distance(self, x, y):
color_intrin = self.color_intrin
ix, iy = self.ix, self.iy
udist = self.depth_frame.get_distance(ix, iy)
vdist = self.depth_frame.get_distance(x, y)
# print udist,vdist
point1 = rs.rs2_deproject_pixel_to_point(color_intrin, [ix, iy], udist)
point2 = rs.rs2_deproject_pixel_to_point(color_intrin, [x, y], vdist)
# print str(point1)+str(point2)
dist = math.sqrt(
math.pow(point1[0] – point2[0], 2) + math.pow(point1[1] – point2[1], 2) + math.pow(
point1[2] – point2[2], 2))
# print ‘distance: ‘+ str(dist)
return dist
—————————————————————————————————————-
For GUI there was two options: matplotlib and opencv
ealier this year I first start with the widget Ruler in matplotlib, and it seems fine
I editted this widget from simply measure pixels to real distance.

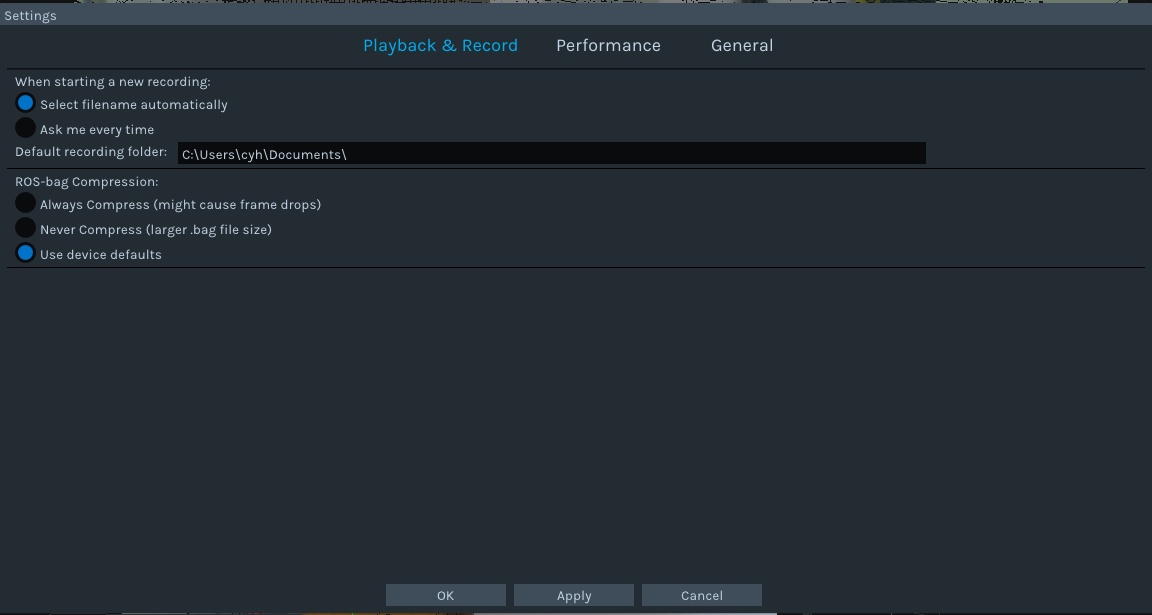

at the same time, the bag file recorded by the camera contains multiple frames, so a video mode is also possible, but with openCV.
At first it was setted at Arcgis hyperlink, with different layers, this month I updated it to a combined version, which is the video at the start.
the measure in opencv is a bit different than the matplotlib:
pt1, pt2 = (self.ix, self.iy), (x, y)
ans = self.calculate_distance(x, y)
cv2.line(img, pt1=pt1, pt2=pt2, color=(0, 0, 230), thickness=3)
cv2.rectangle(img, rec1, rec2, (255, 255, 255), -1)
cv2.putText(img, text, bottomLeftCornerOfText, font, fontScale, fontColor, lineType)
to show the distance
I designed multie-measure record rather than just one result in the matplotlib

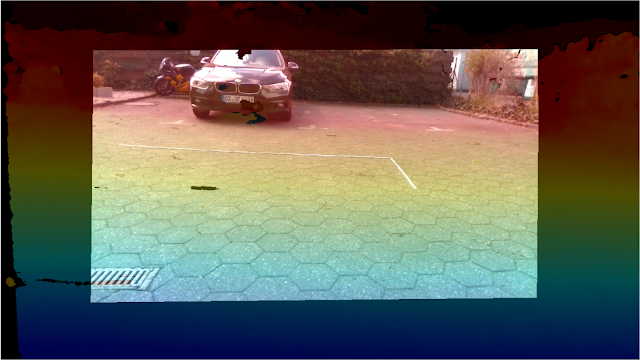

so when we measure the width of a road, the borderline can be first drawn and then more measurements for a more accuate result.

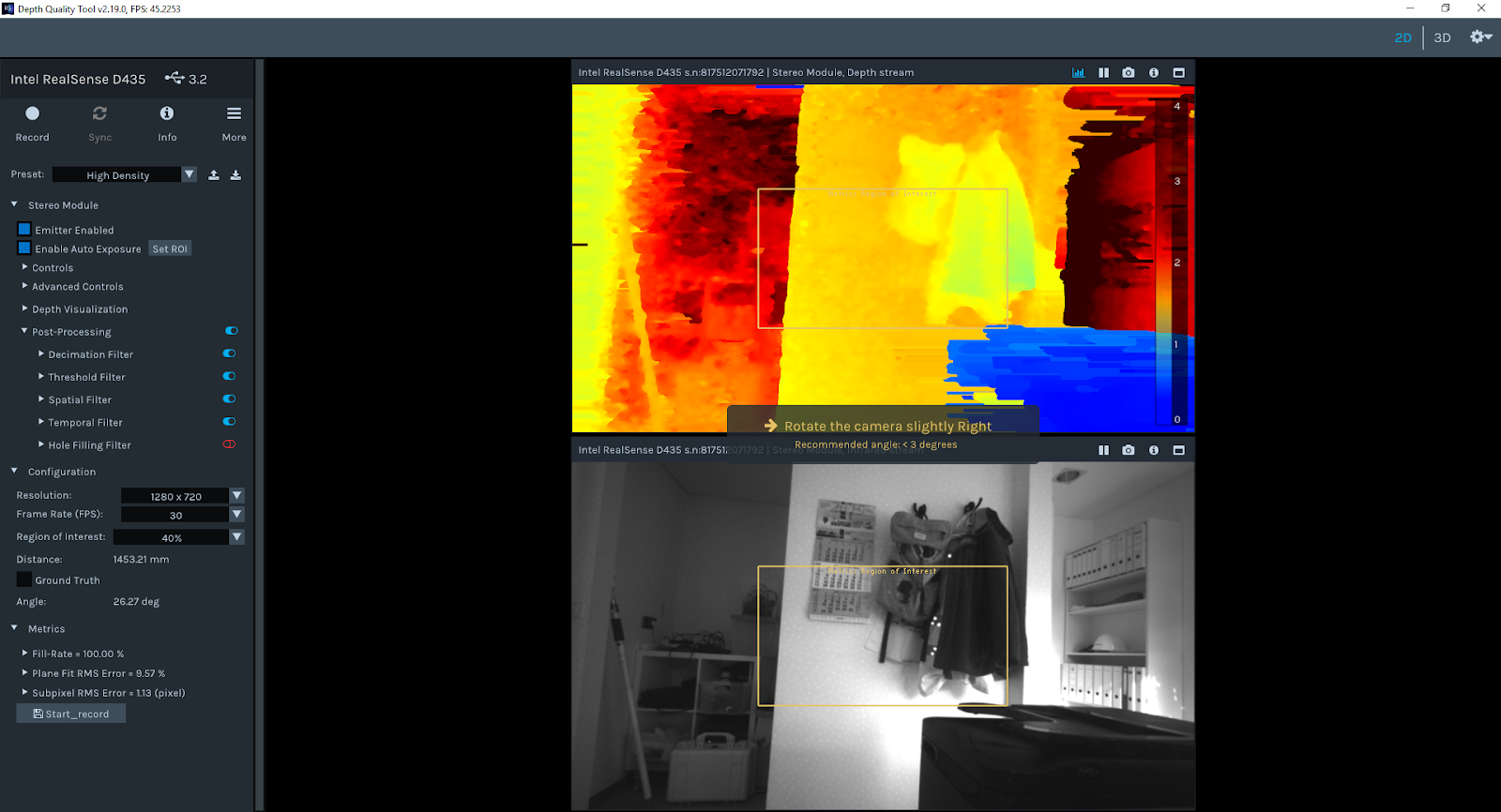

the final result accuacy is within 10 cm
The functions are:
left click will set the start point, hold to get updated distance, when letgo it will set the line and the distance on the screen.
with a simple right click, the canvas is cleaned, shoing original photo
————————————————————————————————————————–
In Arcgis the input will be
import subprocess
def OpenLink ( [jpg_path] ):
bag = [jpg_path]
comnd = ‘python command.py -p {}’.format(bag)
subprocess.call(comnd)
return
first call another thread to prevent crash of the main thread of GIS, prevent data loss
then the jpg path contains road number and frame number and the path
so with simply one click the image can be shown.
because matching depth takes a bit more time, and is not always needed, so I designed to have a faster view of a road, and open the measure mode extra while needed
————————————————————————————————————————-
The current integration of Realsense and ArcGIS is almost done, good for user I would say.
I created record script, export shapefile and jpg, hyperlink measure GUI three big parts for this camera project.
Jaythecheyi
